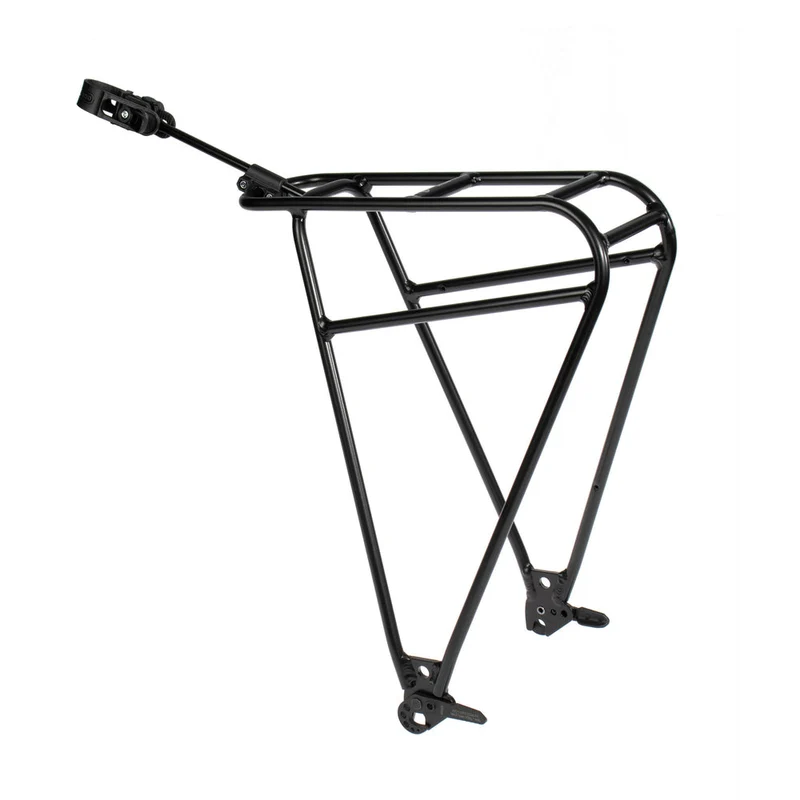

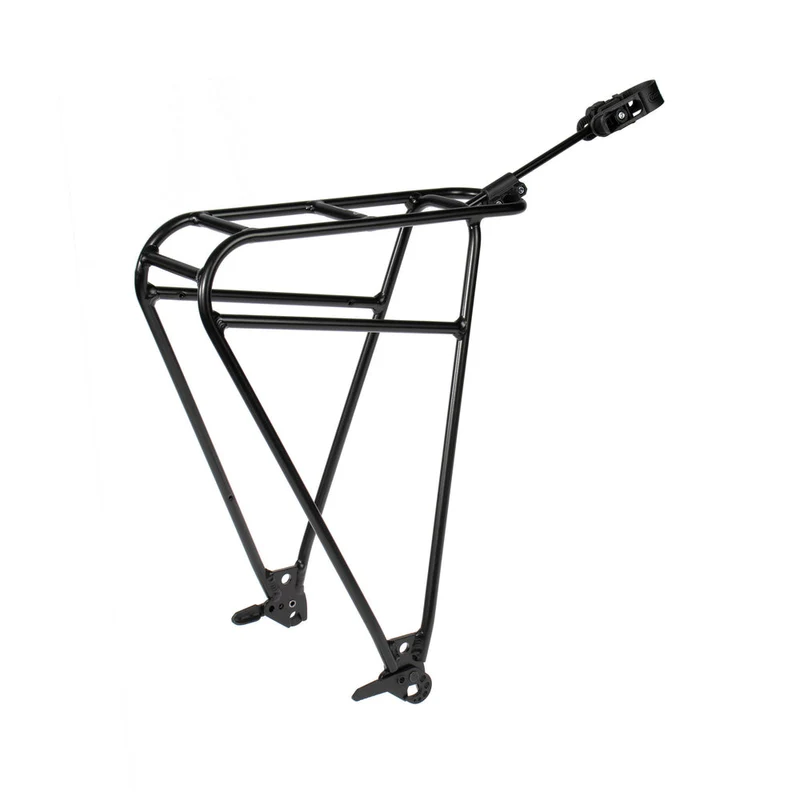

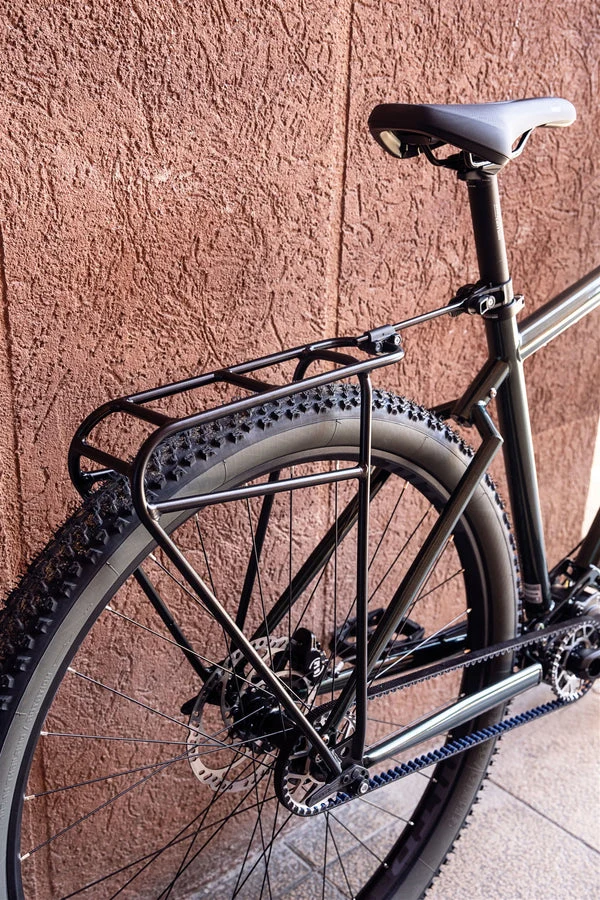

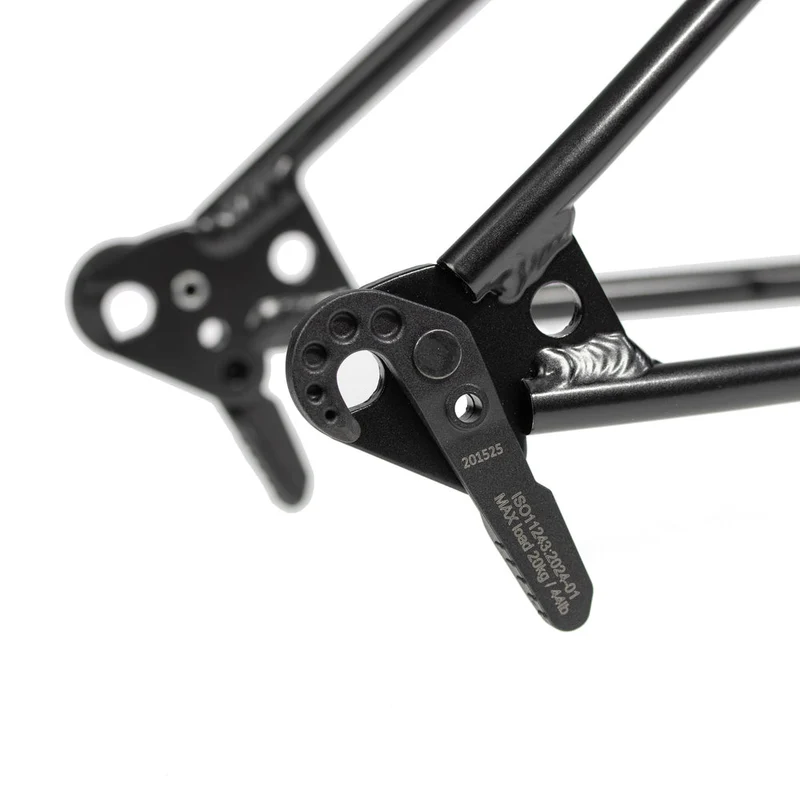

Baggage rack ORTLIEB Quick-Rack L
Turn your bike into a utility bike in just 15 seconds with the baggage carrier ORTLIEB Quick-Rack L. Designed for maximum flexibility, it is ideal for equipping a gravel, a road bike or a trekking bike without weighing up your frame.
Thanks to its ultra-fast mounting, excellent compatibility and load capacity of 20 kg, the Quick-Rack L accompanies you for your daily trips as well as your weekend adventures.
Main features:

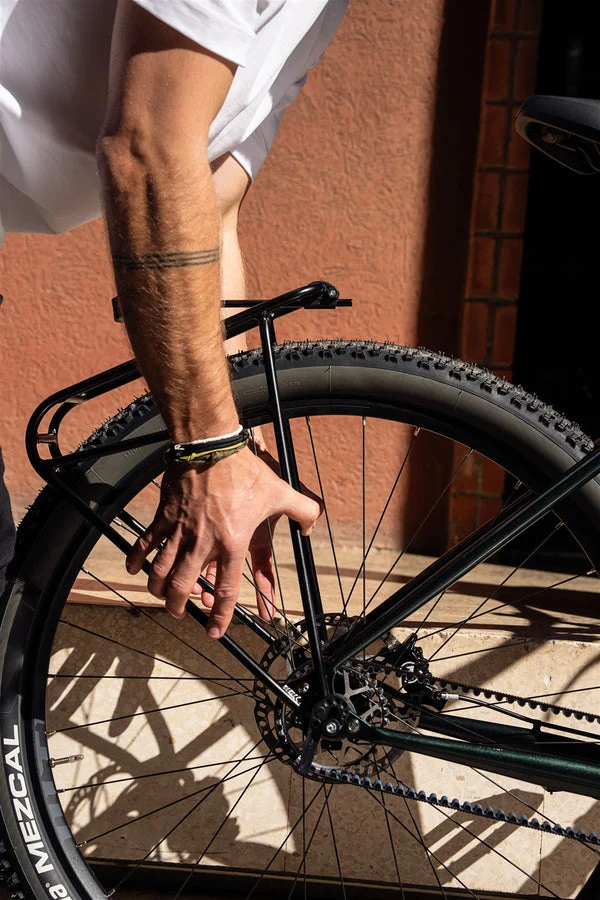

- Fast assembly in 15 seconds, disassembly in 5 seconds
- Load capacity up to 20 kg
- 10 mm diameter solid tubes
- Compatible with all ORTLIEB bags (QL1, QL2.1, QL3.1)
- Two hanging levels for bags and baskets

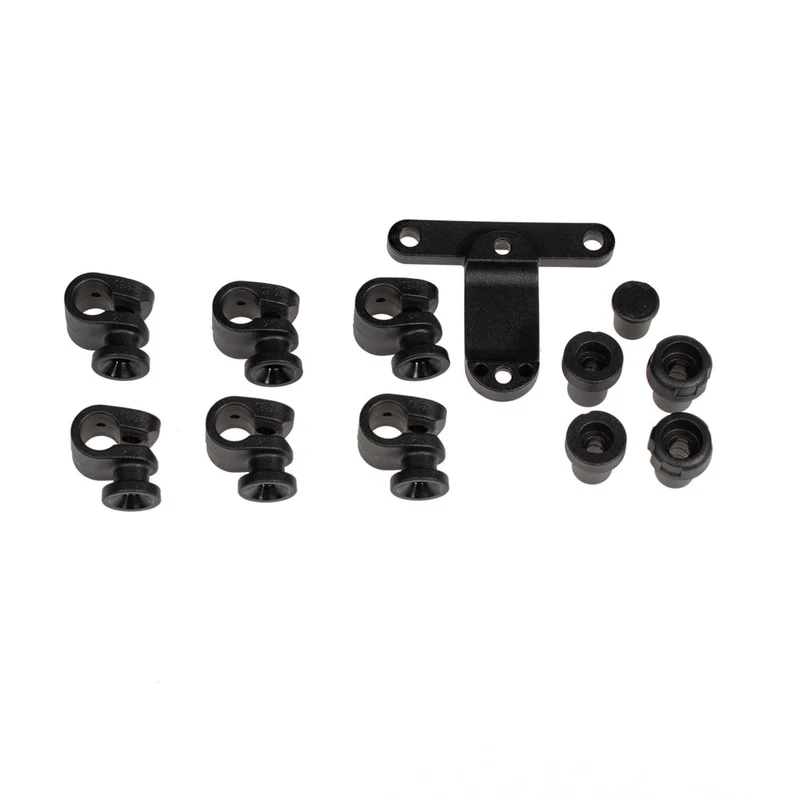

- Mounting possible by threaded attachments, cross-axis or haubans adapter
- Designed for tires up to 29" x 3" (direct mounting or adapter)
- Optional mudguard available
Why choose Quick-Rack L:
- Total flexibility between sport and utility
- Simple mounting even on bikes without carnations
- Large capacity while remaining light and discreet
- Durable manufacturing quality signed ORTLIEB
Technical specifications:
- Height: 41 cm
- Width: 20 cm
- Depth: 41 cm
- Charge maximum: 20 kg
- Weight: 605 g
Mounting compatibility:

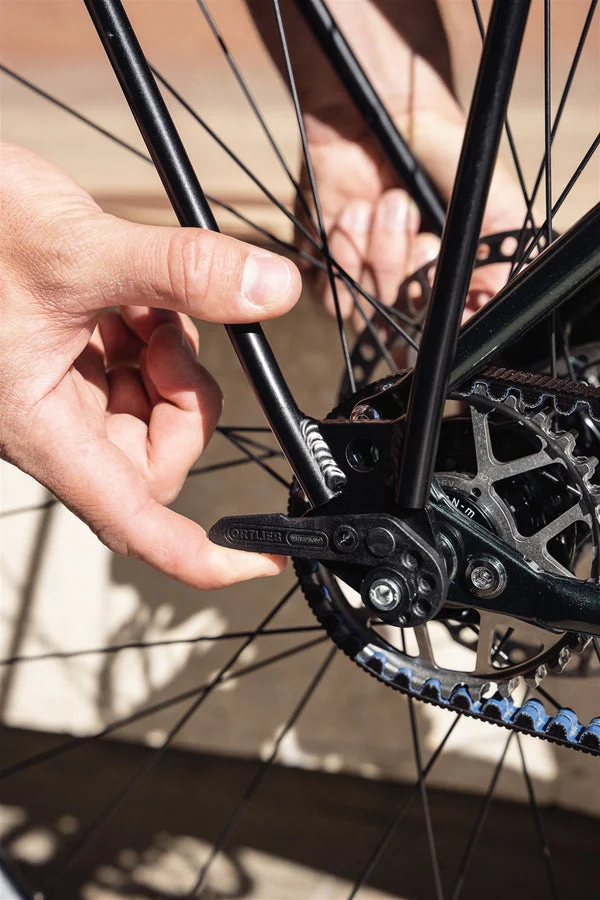

- Direct attachment to eyelets M5 or M6
- Mounting on cross-axis with Thru Axle M6-Connector adapter (optional)

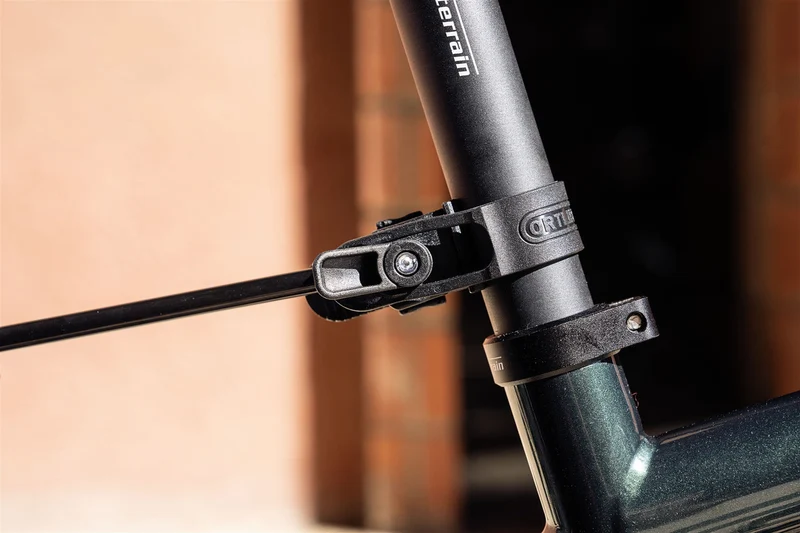

- Seat Stay Adapter (optional)
Recommendations for use:
- Respect maximum load of 20 kg (10 kg per side)
- Do not carry people or use to tow a trailer
- Maintain a minimum gap of 20 mm between the carrier and the tire
Comparison of ORTLIEB Quick-Rack Bag Holders
| Model | Weight | Charge max. | Size max. (direct montage) | Ideal for | Recommended Assembly |
|---|---|---|---|---|---|
| Quick-Rack Light | 440 g | 20 kg | 29" x 2.35" | Gravelbike, road bike | Direct or Seat Stay Adapter |
| Quick-Rack | 580 g | 20 kg | 29" x 2.35" | City bike, trekking, gravel, road, mountain bike | Direct or Seat Stay Adapter |
| Quick-Rack L | 605 g | 20 kg | 29" x 3" | Trekking, touring, gravel | Thru Axle M6-Connector |
| Quick-Rack XL | 780 g | 26 kg | 29" x 3" | Mountain bike, e-bike | Thru Axle M6-Connector |
